Genome Assembly

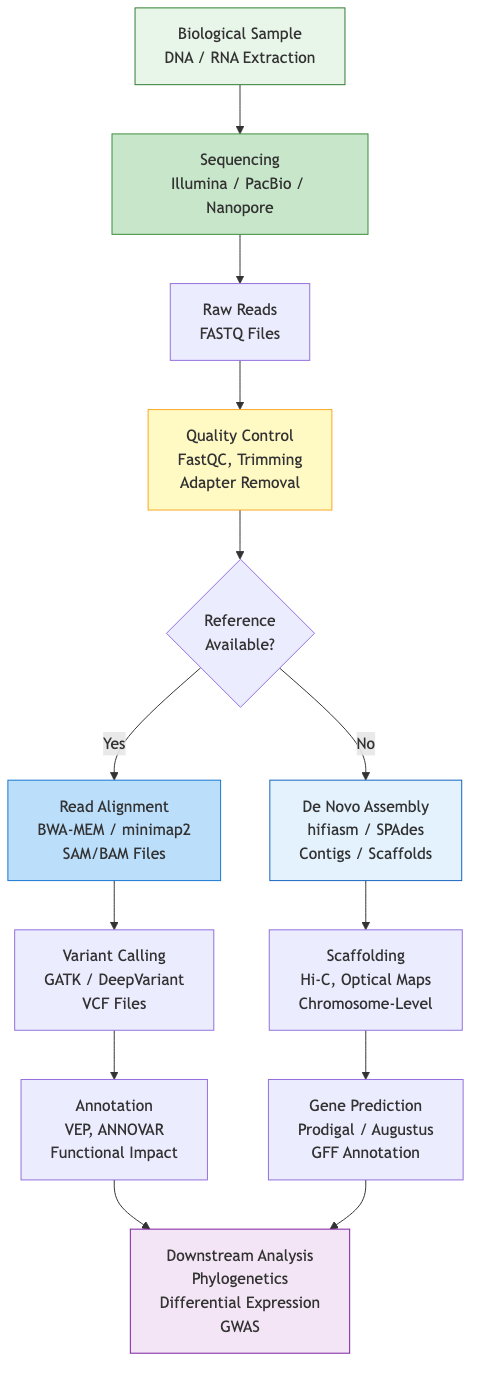

Sequencing and Assembly Pipeline

Sequencing Technologies

Genome assembly reconstructs contiguous genomic sequences from shorter sequenced fragments. The characteristics of sequencing platforms fundamentally shape assembly algorithms.

Illumina (Short-Read Sequencing)

Sequencing by synthesis on a flow cell. Cluster generation amplifies single molecules via bridge PCR. Fluorescently labeled reversible terminators are incorporated one base at a time, imaged, then cleaved.

Read length: 75-300 bp (paired-end: 2x150 most common)
Error rate: ~0.1-1% (substitution-dominated, quality decreases toward 3' end)
Throughput: Up to 6 Tb per run (NovaSeq 6000)
Insert sizes: 300-800 bp (standard), 2-20 kb (mate-pair libraries)
Cost: ~$5-10 per Gb

Pacific Biosciences (PacBio)

Single-molecule real-time (SMRT) sequencing in zero-mode waveguides. Polymerase incorporates fluorescent nucleotides observed in real time.

CLR (Continuous Long Reads): 10-100 kb, ~10-15% error rate (random insertion/deletion errors)
HiFi (Circular Consensus Sequencing): Multiple passes around a circularized template; 10-25 kb reads with >99.9% accuracy (Q30+)
Throughput: 15-30 Gb per SMRT cell (Revio)

Oxford Nanopore Technologies (ONT)

Measures ionic current changes as single-stranded DNA translocates through a protein nanopore. Base calling via recurrent neural networks (Bonito, Dorado).

Read length: Routinely 10-100 kb; ultra-long reads >1 Mb possible
Error rate: ~3-5% (systematic homopolymer errors; improving with R10.4 chemistry and duplex sequencing)
Throughput: 50-100 Gb (PromethION flow cell)
Unique features: Direct RNA sequencing, real-time base modification detection, adaptive sampling

Other Technologies

Hi-C: Chromatin conformation capture; provides long-range (Mb-scale) proximity information for scaffolding and phasing
Linked reads (10x Genomics, discontinued): Short reads with barcode tags from same long molecule
Optical mapping (Bionano): Restriction enzyme site patterns on long DNA molecules

Assembly Graph Theory

Overlap-Layout-Consensus (OLC)

Classical approach suited for long reads (Sanger, PacBio CLR, Nanopore):

Overlap: Find all pairwise overlaps between reads using all-vs-all comparison (minimap2, DALIGNER). Store as overlap graph where nodes = reads, edges = overlaps.
Layout: Identify a consistent path through the overlap graph (Hamiltonian path problem). Remove transitive edges, resolve bubbles from heterozygosity and errors.
Consensus: Generate consensus sequence from the layout using multiple alignment or statistical models.

Complexity: The overlap step is O(n^2) in reads; heuristic filtering (minimizers, seed-and-chain) makes this tractable. The layout phase must handle repeat-induced ambiguities.

De Bruijn Graph Assembly

Dominant approach for short-read assembly:

Decompose reads into all k-mers (subsequences of length k)
Construct a de Bruijn graph: nodes are (k-1)-mers, edges represent k-mers connecting consecutive (k-1)-mers
Find an Eulerian path through the graph (polynomial time, unlike the Hamiltonian path in OLC)

Key parameters and challenges:

k-mer size: Small k increases connectivity but introduces ambiguity at repeats; large k resolves repeats but fragments the graph at low-coverage regions. Typical range: 21-127.
Multi-k assembly: SPAdes uses multiple k values and merges resulting graphs
Error handling: Erroneous k-mers create tips (dead-end paths) and bubbles; removed by coverage-based filtering
Repeat resolution: Repeats longer than k create tangles; paired-end information and coverage depth help resolve them

String Graph

A variant of OLC where reads are nodes but transitive overlaps are removed, yielding a compact graph. Used by assemblers like SGA and hifiasm. Conceptually cleaner than de Bruijn graphs for long reads since it avoids k-mer decomposition artifacts.

Assemblers

SPAdes (Short Reads)

Multi-k de Bruijn graph assembler with error correction:

BayesHammer: Read error correction using Bayesian subclustering of k-mer neighborhoods
Graph construction: Build de Bruijn graphs for multiple k values; merge into a unified assembly graph
Paired-end resolution: Use paired reads and coverage to resolve repeats
Mismatch and chimera correction: Post-assembly polishing

Variants: metaSPAdes (metagenomes), rnaSPAdes (transcriptomes), coronaSPAdes (viral genomes).

Hifiasm (HiFi Long Reads)

Produces phased assemblies from PacBio HiFi reads:

All-vs-all overlap using minimizer-based seeding
Haplotype-aware string graph construction: preserves both haplotypes as separate paths
Graph cleaning: Removes errors while retaining genuine heterozygosity
Trio binning (optional): Uses parental short reads to phase haplotypes

Produces near-complete, highly accurate diploid assemblies. Telomere-to-telomere assemblies are now routine for human-sized genomes with sufficient HiFi + ultra-long ONT coverage.

Other Notable Assemblers

Canu: OLC assembler for noisy long reads; correction + trimming + assembly pipeline
Flye: Repeat graph assembly for long reads; handles high-error data well
MEGAHIT: Memory-efficient de Bruijn graph assembler for metagenomes using succinct data structures
Verkko: Hybrid assembler combining HiFi and ultra-long ONT reads for telomere-to-telomere assembly
wtdbg2: Fuzzy de Bruijn graph approach for ultra-fast long-read assembly

Scaffolding and Gap Filling

Scaffolding

Scaffolding orders and orients contigs into larger scaffolds using long-range information:

Mate-pair/linked reads: Bridge gaps of known approximate size
Hi-C: Chromatin proximity ligation data; SALSA2, 3D-DNA, YaHS use contact frequency (decaying as ~1/distance) to order contigs into chromosome-scale scaffolds
Optical maps: Provide restriction site pattern scaffolding (Bionano Solve)
Genetic/physical maps: Independent positional information

Gap Filling

Fills N-runs in scaffolds using reads spanning the gap (GapFiller, TGS-GapCloser for long reads).

Polishing

Correct residual errors in consensus sequences:

Short-read polishing: Pilon maps Illumina reads back to assembly; corrects SNPs, small indels
Long-read polishing: Medaka (ONT), DeepConsensus (PacBio)
Iterative polishing: Multiple rounds may be needed, especially for ONT assemblies

Assembly Quality Assessment

Contiguity Metrics

N50: The contig/scaffold length such that contigs of this length or longer cover 50% of the total assembly. Higher is better. NG50 normalizes to expected genome size.
L50: The number of contigs needed to reach 50% of total assembly length
Largest contig: Single longest assembled sequence
Total span: Sum of all contig lengths; should approximate expected genome size
Gap content: Percentage of N bases in scaffolds

Completeness Metrics

BUSCO (Benchmarking Universal Single-Copy Orthologs): Searches the assembly for conserved single-copy genes expected in the taxonomic lineage. Reports percentages as Complete (single + duplicated), Fragmented, and Missing. A high-quality assembly typically shows >95% complete BUSCOs.

k-mer completeness (Merqury): Compares k-mer spectrum of the assembly to that of raw reads. Measures QV (consensus quality value), completeness, and phasing accuracy without requiring a reference genome.

Correctness Assessment

QUAST: Compares assembly to a reference genome; reports misassemblies, mismatches, indels, NGA50
Inspector: Long-read based assembly evaluation detecting structural and base errors
Read mapping rate: Fraction of reads that align back to the assembly

Metagenome Assembly

Metagenome assembly reconstructs genomes from mixed microbial communities, introducing unique challenges:

Uneven coverage: Dominant species at 1000x, rare species at 0.1x
Inter-species repeats: Conserved genes create chimeric assemblies between related organisms
Strain variation: Closely related strains create tangles in the assembly graph

Approaches

Co-assembly: Pool samples for better coverage; risk of chimeras increases
Sample-specific assembly: Reduces chimeras but may fragment low-abundance genomes
Binning: Group contigs into metagenome-assembled genomes (MAGs) using composition (tetranucleotide frequency, GC content) and differential coverage across samples (MetaBAT2, MaxBin2, CONCOCT). DAS Tool integrates multiple binning results.

MAG Quality Standards (MIMAG)

High quality: >90% completeness, <5% contamination, presence of 23S/16S/5S rRNA and >18 tRNAs
Medium quality: >50% completeness, <10% contamination
Assessed by CheckM/CheckM2 using lineage-specific marker gene sets

Current State and Challenges

The T2T (Telomere-to-Telomere) Consortium completed the first gap-free human genome in 2022, resolving centromeres, segmental duplications, and rDNA arrays. Key remaining challenges include polyploid genome assembly (e.g., hexaploid wheat), highly repetitive genomes, population-scale pangenome construction (via minigraph-cactus), and real-time assembly for clinical and field applications.
