Number Systems
Digital systems represent all information as sequences of bits. Understanding number systems and their conversions is fundamental to how computers store and process data.
Positional Number Systems
A number in base b (radix b) with digits dₙdₙ₋₁...d₁d₀.d₋₁d₋₂... has value:
Σᵢ dᵢ × bⁱ
Binary (Base 2)
Digits: {0, 1}. Each digit is a bit (binary digit).
1011₂ = 1×2³ + 0×2² + 1×2¹ + 1×2⁰ = 8 + 0 + 2 + 1 = 11₁₀
Terminology:
- Nibble: 4 bits
- Byte: 8 bits
- Word: Architecture-dependent (16, 32, or 64 bits)
Octal (Base 8)
Digits: {0, 1, 2, 3, 4, 5, 6, 7}. Each octal digit = 3 bits.
375₈ = 3×64 + 7×8 + 5 = 253₁₀
375₈ = 011 111 101₂
Used in Unix file permissions (chmod 755 = rwxr-xr-x).
Hexadecimal (Base 16)
Digits: {0-9, A-F} (A=10, B=11, ..., F=15). Each hex digit = 4 bits.
0x1A3F = 1×4096 + 10×256 + 3×16 + 15 = 6719₁₀
0x1A3F = 0001 1010 0011 1111₂
Ubiquitous in computing: memory addresses, color codes (#FF00FF), MAC addresses, byte values.
Conversions
Decimal to Binary
Integer part: Repeated division by 2, read remainders bottom-up.
42 ÷ 2 = 21 R 0
21 ÷ 2 = 10 R 1
10 ÷ 2 = 5 R 0
5 ÷ 2 = 2 R 1
2 ÷ 2 = 1 R 0
1 ÷ 2 = 0 R 1
→ 42₁₀ = 101010₂
Fractional part: Repeated multiplication by 2, read integer parts top-down.
0.625 × 2 = 1.25 → 1
0.25 × 2 = 0.5 → 0
0.5 × 2 = 1.0 → 1
→ 0.625₁₀ = 0.101₂
Some fractions (like 0.1₁₀) produce infinite repeating binary fractions — the root cause of floating-point "errors."
Binary ↔ Hex
Group binary digits in 4s (pad with leading zeros):
1011 0110 1100₂ = B6C₁₆
0xDEAD = 1101 1110 1010 1101₂
Binary ↔ Octal
Group in 3s:
101 110 100₂ = 564₈
Binary Coded Decimal (BCD)
Each decimal digit encoded separately in 4 bits:
92₁₀ = 1001 0010_BCD (not 1011100₂)
Advantages: Easy conversion to/from decimal display. No rounding for decimal fractions. Disadvantages: Wastes space (6 of 16 4-bit codes unused). Arithmetic is more complex.
Used in financial calculations, embedded displays, and some database decimal types.
Gray Code
Adjacent codes differ in exactly one bit. Avoids transient errors during transitions.
| Decimal | Binary | Gray | |---|---|---| | 0 | 000 | 000 | | 1 | 001 | 001 | | 2 | 010 | 011 | | 3 | 011 | 010 | | 4 | 100 | 110 | | 5 | 101 | 111 | | 6 | 110 | 101 | | 7 | 111 | 100 |
Binary to Gray: Gᵢ = Bᵢ ⊕ Bᵢ₊₁ (XOR with next higher bit), G_msb = B_msb.
Gray to Binary: Bᵢ = Gᵢ ⊕ Bᵢ₊₁, B_msb = G_msb.
Applications: Rotary encoders, Karnaugh maps, error reduction in ADC.

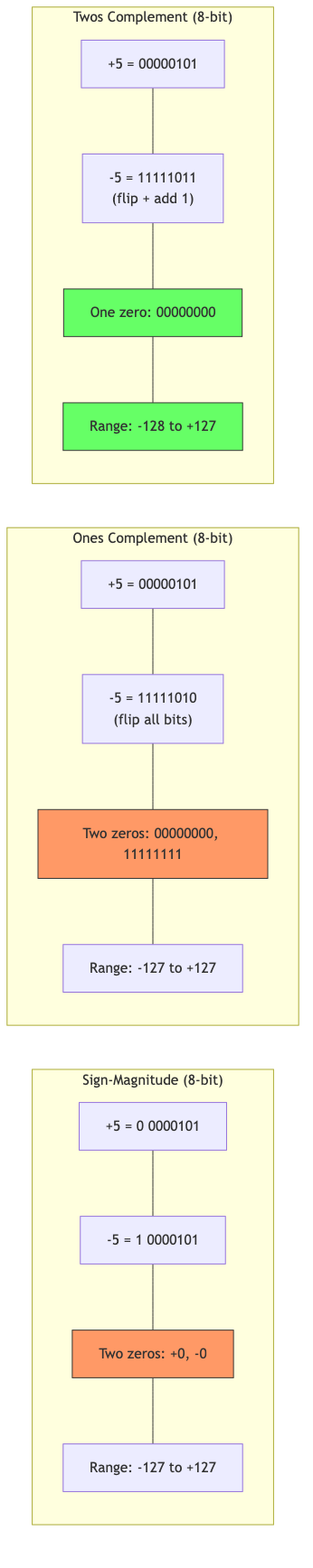

Signed Integer Representations
Sign-Magnitude
MSB is the sign (0 = positive, 1 = negative), remaining bits are the magnitude.
+5 = 0 0101
-5 = 1 0101
Problems: Two zeros (+0 and -0). Arithmetic is complex (separate add/subtract logic).
Range (n bits): -(2ⁿ⁻¹ - 1) to +(2ⁿ⁻¹ - 1).
One's Complement
Negate by flipping all bits.
+5 = 0 0101
-5 = 1 1010
Problems: Two zeros (0000... and 1111...). End-around carry needed in addition.
Two's Complement
The standard representation used by virtually all modern hardware.
Negate by flipping all bits and adding 1:
+5 = 0000 0101
~5 = 1111 1010 (flip)
-5 = 1111 1011 (add 1)
Properties:
- One zero (no negative zero)
- Range (n bits): -2ⁿ⁻¹ to +2ⁿ⁻¹ - 1
- 8-bit: -128 to +127
- 16-bit: -32768 to +32767
- 32-bit: -2,147,483,648 to +2,147,483,647
- 64-bit: -9.22 × 10¹⁸ to +9.22 × 10¹⁸
- Addition works the same as unsigned (hardware simplicity)
- MSB is the sign: 0 = non-negative, 1 = negative
- Asymmetric: |min| = |max| + 1 (there's no +128 in 8-bit)
Overflow: Adding two positives can produce a negative (or two negatives → positive). Detected when the carry into the sign bit differs from the carry out.
Sign extension: To widen an n-bit value to m bits (m > n), replicate the sign bit: 1011 (4-bit -5) → 1111 1011 (8-bit -5).
Arithmetic in Two's Complement
0101 (+5) 1011 (-5)
+ 0011 (+3) + 1101 (-3)
------ ------
1000 (+8) 11000 → 1000 (-8) ✓ (carry discarded)
Subtraction: A - B = A + (-B) = A + (~B + 1).
Fixed-Point Representation
A fixed number of bits before and after the binary point.
Q notation: Qm.n = m integer bits + n fractional bits.
Q3.4: 011.1010 = 2 + 1 + 0.5 + 0.125 = 3.625
Advantages: Integer arithmetic hardware. Exact decimal fractions (if chosen well). Deterministic timing. Disadvantages: Limited range and precision. Must carefully track the binary point.
Used in DSP, embedded systems, financial calculations, and game engines.
IEEE 754 Floating-Point
Single Precision (32-bit, f32)
[S | EEEEEEEE | MMMMMMMMMMMMMMMMMMMMMMM]
1 8 bits 23 bits
Value = (-1)^S × 1.M × 2^(E - 127)
- Bias: 127
- Exponent range: -126 to +127
- Precision: ~7 decimal digits
- Range: ~±3.4 × 10³⁸
Double Precision (64-bit, f64)
[S | EEEEEEEEEEE | MMMM...M (52 bits)]
1 11 bits 52 bits
Value = (-1)^S × 1.M × 2^(E - 1023)
- Bias: 1023
- Exponent range: -1022 to +1023
- Precision: ~15-16 decimal digits
- Range: ~±1.8 × 10³⁰⁸
Special Values
| Exponent | Mantissa | Value | |---|---|---| | 0 | 0 | ±0 | | 0 | ≠ 0 | Subnormal: ±0.M × 2^(-126) | | 255 (f32) / 2047 (f64) | 0 | ±∞ | | 255 / 2047 | ≠ 0 | NaN |
Rounding Modes
- Round to nearest, ties to even (default, "banker's rounding"): Minimizes statistical bias.
- Round toward +∞ (ceiling)
- Round toward -∞ (floor)
- Round toward zero (truncation)
Floating-Point Gotchas
0.1 + 0.2 ≠ 0.3 (representation error)
(a + b) + c ≠ a + (b + c) (not associative)
x + 1 = x (for large enough x: x > 2⁵³ in f64)
x - x ≠ 0 (for x = NaN)
Comparison: Never use == for floats. Use |a - b| < ε or relative comparison.
Applications in CS
- Memory addressing: Hexadecimal for addresses (0x7FFF_FFFF).
- Networking: IP addresses (32-bit), MAC addresses (48-bit hex).
- Color: RGB hex codes (#FF8800 = orange).
- Character encoding: ASCII (7-bit), Unicode code points (U+0041 = 'A').
- Instruction encoding: Opcodes in binary/hex.
- Cryptography: Keys, hashes in hexadecimal.
- Error detection: CRC, checksums operate on binary data.
- Digital signal processing: Fixed-point for real-time audio/video processing.
