Consensus in Distributed Systems
The Consensus Problem
All correct processes must agree on a single value, even when some processes fail.
Properties:
- Agreement: All correct processes decide on the same value
- Validity: The decided value was proposed by some process
- Termination: All correct processes eventually decide
- Integrity: Each process decides at most once
P1 proposes: v1 ─┐
P2 proposes: v2 ─┼──> Consensus ──> All decide: v2
P3 proposes: v3 ─┤
P4 (crashed) ✗ ─┘
Paxos
Lamport's Paxos (1998) solves consensus in a partially synchronous model with crash failures.
Basic Paxos (Single-Decree)
Three roles: Proposers, Acceptors, Learners (a node can play multiple roles).
Phase 1: PREPARE
Proposer Acceptors (majority needed)
│── Prepare(n) ───────> A1: if n > max_seen → Promise(n, prev_val)
│── Prepare(n) ───────> A2: if n > max_seen → Promise(n, prev_val)
│── Prepare(n) ───────> A3: if n > max_seen → Promise(n, prev_val)
Phase 2: ACCEPT
Proposer Acceptors
│── Accept(n, v) ─────> A1: if n ≥ max_promised → Accepted(n, v)
│── Accept(n, v) ─────> A2: if n ≥ max_promised → Accepted(n, v)
│── Accept(n, v) ─────> A3: if n ≥ max_promised → Accepted(n, v)
v = highest-numbered value from Phase 1 promises,
or proposer's own value if none
Key insight: if any acceptor already accepted a value, the proposer must use that value (preserving previous decisions).
Multi-Paxos
Optimizes repeated consensus by electing a stable leader who skips Phase 1 for subsequent slots.
Slot 1: Full Paxos (Prepare + Accept) ← establishes leader
Slot 2: Accept only (leader skip Prepare)
Slot 3: Accept only
...
Slot N: Accept only
Leader failure → new leader runs full Paxos for current slot
Paxos Challenges
- Hard to implement correctly (notoriously subtle)
- No distinguished leader in basic Paxos leads to livelock (dueling proposers)
- Multi-Paxos is not fully specified in the original paper
- Gap filling needed when slots are decided out of order
Raft
Ongaro and Ousterhout (2014) designed Raft explicitly for understandability. Equivalent power to Multi-Paxos.
Core Components
┌──────────────────────────────────────┐
│ Raft Node │
│ ┌──────────┐ ┌──────────────────┐ │
│ │ State │ │ Log │ │
│ │ Machine │ │ [1][2][3][4][5] │ │
│ └──────────┘ └──────────────────┘ │
│ Role: Leader / Follower / Candidate │
│ Term: monotonically increasing │
└──────────────────────────────────────┘
Leader Election
Follower ──(election timeout expires)──> Candidate
│ │
│ increments term
│ votes for self
│ <── RequestVote(term, log_info) ── │
│ │
│ ── VoteGranted ──> (if majority) ──> Leader
│ │
│ ── VoteRejected ──> (if lost) ──> Follower
│ │
└──(receives AppendEntries from leader)──> Follower
Election timeout: randomized (e.g., 150-300ms)
to avoid split votes
Vote granting rules:
- Candidate's term must be at least as large as voter's current term
- Candidate's log must be at least as up-to-date (last term, then length)
- Each node votes for at most one candidate per term
Log Replication
Client ──> Leader: "set x=5"
Leader log: [1:set x=1] [1:set y=2] [2:set x=5]
↑ new entry
Leader ──AppendEntries──> Follower A: appends, ACKs
Leader ──AppendEntries──> Follower B: appends, ACKs
Leader ──AppendEntries──> Follower C: (slow, no ACK yet)
Leader ──AppendEntries──> Follower D: appends, ACKs
Majority (3/5) ACKs → Leader commits entry
→ responds to client
→ next AppendEntries tells followers to commit
STRUCTURE LogEntry
term: integer
index: integer
command: bytes
STRUCTURE RaftNode
id: integer
current_term: integer
voted_for: integer or NONE
log: list of LogEntry
commit_index: integer
last_applied: integer
// Leader state
next_index: array of integer // per follower
match_index: array of integer // per follower
role: FOLLOWER | CANDIDATE | LEADER
PROCEDURE SHOULD_GRANT_VOTE(node, candidate_term,
candidate_last_log_term,
candidate_last_log_index) → boolean
IF candidate_term < node.current_term THEN
RETURN FALSE
IF node.voted_for IS NOT NONE
AND node.voted_for ≠ candidate_term THEN
RETURN FALSE // already voted this term
// Candidate's log must be at least as up-to-date
IF node.log IS NOT empty THEN
my_last_term ← LAST(node.log).term
my_last_index ← LAST(node.log).index
ELSE
my_last_term ← 0
my_last_index ← 0
RETURN (candidate_last_log_term, candidate_last_log_index)
≥ (my_last_term, my_last_index)
Membership Changes
Raft uses single-server changes (joint consensus in the original paper):
C_old C_old,new C_new
│ │ │
│── add server ──│── commit ─────│
│ │ │
Old config Transitional New config
decides both configs decides
must agree
The simpler single-server approach (add/remove one node at a time) avoids the complexity of joint consensus and is used by most implementations.
PBFT (Practical Byzantine Fault Tolerance)
Castro and Liskov (1999). Tolerates f Byzantine faults among n >= 3f + 1 nodes.
Client ──request──> Primary (leader)
│ │
│ PRE-PREPARE(v, n, m)
│ │──────────> R1, R2, R3
│ │
│ PREPARE(v, n, d, i)
│ R1 <──────────> R2 <──────────> R3
│ │
│ COMMIT(v, n, d, i)
│ R1 <──────────> R2 <──────────> R3
│ │
│ <── REPLY ────── R1, R2, R3 (client waits for f+1 matching)
Phases: PRE-PREPARE → PREPARE → COMMIT → REPLY
Communication: O(n^2) messages per consensus round
View change replaces a faulty primary, similar to leader election in Raft but more complex due to Byzantine assumptions.
Modern BFT Protocols
Tendermint
Used in Cosmos blockchain. Round-based BFT with two voting phases:
Propose → Prevote → Precommit → Commit
│ │ │
│ 2/3+ prevotes 2/3+ precommits
│ for proposal for proposal
│ │
└─── round timeout ──────┘ (move to next round)
Advantages: deterministic finality, simpler than PBFT, O(n) message complexity with threshold signatures.
HotStuff
Used in Facebook's (now Meta's) Diem/Libra. Achieves O(n) communication per round using a star topology and threshold signatures.
Basic HotStuff Pipeline:
Round k: PREPARE ──>
Round k+1: PRE-COMMIT ──> (for round k)
Round k+2: COMMIT ──> (for round k)
Round k+3: DECIDE ──> (for round k)
Chained HotStuff: pipeline all phases
Round k: GENERIC message serves as PREPARE for k,
PRE-COMMIT for k-1, COMMIT for k-2, DECIDE for k-3
Key innovation: responsive leader protocol where the leader only waits for n-f messages (not a fixed timeout).

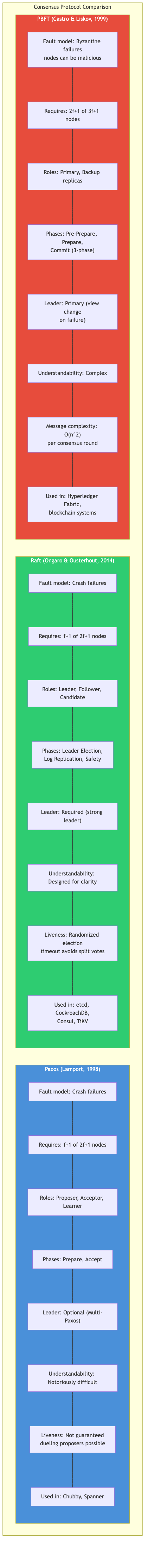

Comparison
| Protocol | Fault Model | Nodes Needed | Msg Complexity | Latency (rounds) | |---|---|---|---|---| | Paxos | Crash | 2f + 1 | O(n) | 2 | | Raft | Crash | 2f + 1 | O(n) | 2 | | PBFT | Byzantine | 3f + 1 | O(n^2) | 3 | | Tendermint | Byzantine | 3f + 1 | O(n) | 3 | | HotStuff | Byzantine | 3f + 1 | O(n) | 4 (3 pipelined) |
Real-World Deployments
| System | Protocol | Use Case | |---|---|---| | etcd | Raft | Kubernetes cluster state | | CockroachDB | Multi-Raft | Distributed SQL | | Consul | Raft | Service discovery | | Cosmos/Tendermint | Tendermint BFT | Blockchain consensus | | Diem (discontinued) | HotStuff | Permissioned blockchain | | ZooKeeper | Zab (Paxos variant) | Distributed coordination |
Key Takeaways
- Paxos is theoretically elegant but notoriously difficult to implement correctly. Raft provides equivalent guarantees with a clearer structure.
- Raft separates concerns (leader election, log replication, safety) making it easier to reason about and implement.
- BFT protocols handle malicious nodes but pay a cost in message complexity and latency. Modern variants (HotStuff) reduce this to O(n) with pipelining.
- All these protocols assume partial synchrony for liveness. Under full asynchrony, FLP applies and only randomized protocols can guarantee termination.
